Scan-Derived Geometry (Technical Reference)

Scope

The companion to "Working with Reality Capture Scans": how a floorplan gets built out of a point cloud, and how its origin is recorded.

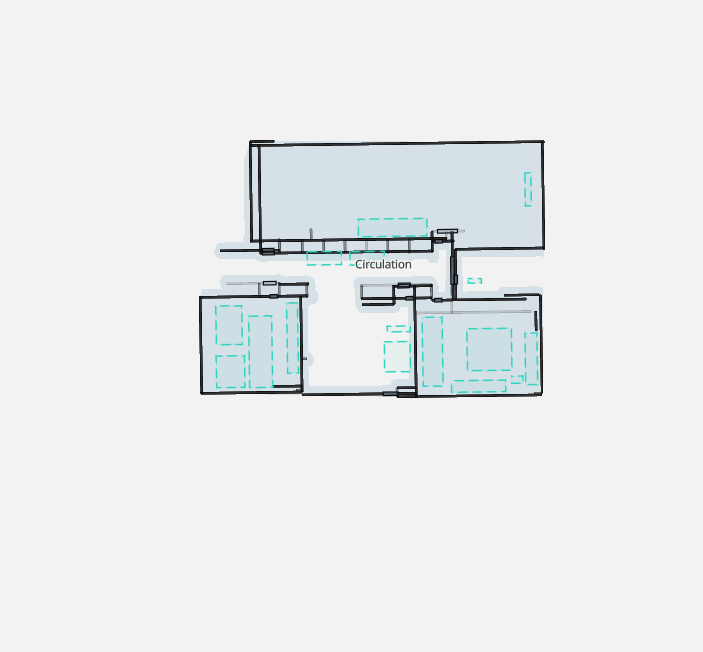

A facility with fully scan-derived architecture: walls, doors and rooms drawn entirely from extraction output, with no authored IFC behind them.

The boundary, first

A scan-derived facility is real and supported. The facility above has no authored IFC at all. Every wall, door and room came out of a point cloud, and the map draws it, Directions routes through it, and BIM Compare measures against it.

Promoting scan geometry into the model is not a button. There is no Scan to BIM action, no Derive walls from scan, and no Discard scan-derived geometry. Those were removed on 2026-08-23. What the product does is report: BIM Compare tells you where the scan and the model disagree, you accept or reject each finding, and a person decides which of the two is wrong.

The capability was removed for its shape, not because it was unwanted. It wrote inferred walls, doors and rooms into floorplan_elements and rooms in one click, in bulk, with no per-item review and no record of origin. Once it had run, nothing distinguished a surveyed wall from one a point cloud had guessed at, and that distinction is the one property this schema exists to preserve.

The replacement is specified in [#475](https://github.com/Requify-Pty-Ltd/reqtwin/issues/475) and is not built: a delta type for fabric the scan sees and the model lacks, per-finding accept and dismiss, no bulk apply, provenance on anything written, and per-finding reversal. Until then the pipeline below is reached by script when building a fixture, not by a user. The extraction code is unchanged. Only its trigger changed.

Data model

The Reality Capture registry is reality_captures, reality_assets, pointcloud_sources, pointcloud_slices, pointcloud_room_clips, pointcloud_links, pano_poses, drone_tiles, capture_suggestions and reality_capture_stations. These interlock with, but stay separate from, the Twin's own geometry (facilities, levels, rooms, floorplan_elements, discrete_assets, nav_nodes, nav_edges). Findings land in bim_capture_deltas, stamped back to reality_captures by capture_id.

Extraction code lives under app/(app)/lib/server/pointcloud/: wall and asset extraction, banding and slicing, georeferencing, and the format readers. Above it sit derive-walls.ts, scan-to-bim.ts, bim-compare-run.ts and reality-capture.ts.

persist_scan_derived_details()

Migration 20260727212027_persist_scan_derived_details.sql:

sql
persist_scan_derived_details(
  p_document_id uuid,
  p_facility_id uuid,
  p_level_id    uuid,
  p_segments    jsonb,   -- [{"kind":"wall"|"door","a":[lon,lat],
                         --   "b":[lon,lat],"thickness_m":0.1}, ...]
  p_source_ref  text default 'scan_extract_v1'
) returns table (detail_type text, inserted integer)

Geometry is built in PostGIS rather than TypeScript, because PostGIS already buffers correctly and the app would otherwise grow a second, worse implementation.

Blast radius. A run first deletes what a previous run of *this source* wrote for this level, matched on bim_data->>'scan_source' = p_source_ref. Scoping by source tag rather than by detail_type means a re-run cannot widen into authored or IFC-derived geometry. A re-run reproduces identical source_element_ids with no row growth.

endcap=flat join=mitre is not a detail. Round caps overshoot a segment's endpoints by half the wall thickness and refuse to meet neighbours squarely, which is what produced rounded free-floating wall stubs in a corridor. Verified on dev: a 10 m segment at 0.1 m thickness yields a 5-point polygon of area 1.005 m², an implied thickness of exactly 0.100 m, and two segments sharing an endpoint intersect. Zero-length segments are dropped; thickness is floored at 0.02 m.

Provenance

Origin is recorded, never implied.

Derived is not the same claim as invented, and the two flags say different things. Scan-derived walls carry provenance = 'scan' and so pass the real-fabric filter that routing and the overhead classifier read, despite also carrying is_synthesized = true.

Scan-derived assets are held to a stricter standard: drawn teal and dashed, and excluded from the Assets panel until reviewed, because unverified extraction output must never pass as authored fabric.

Limitations

See "How Architectural Detail Reaches the Twin Map" for how the same provenance rules apply to IFC-sourced and code-synthesised elements.
